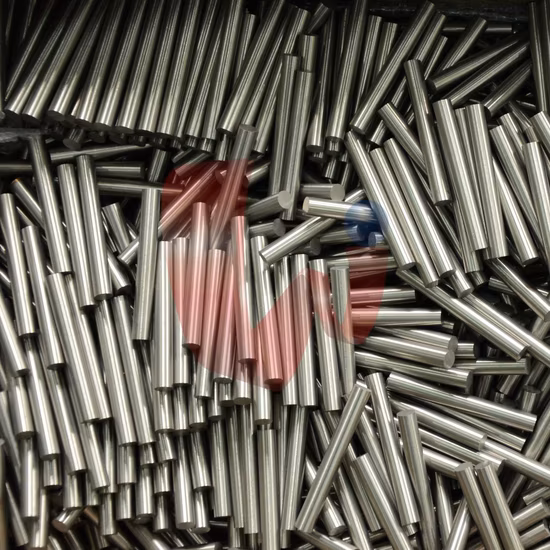

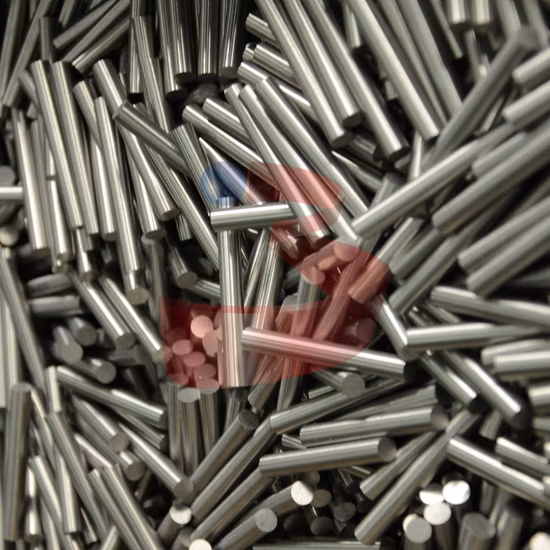

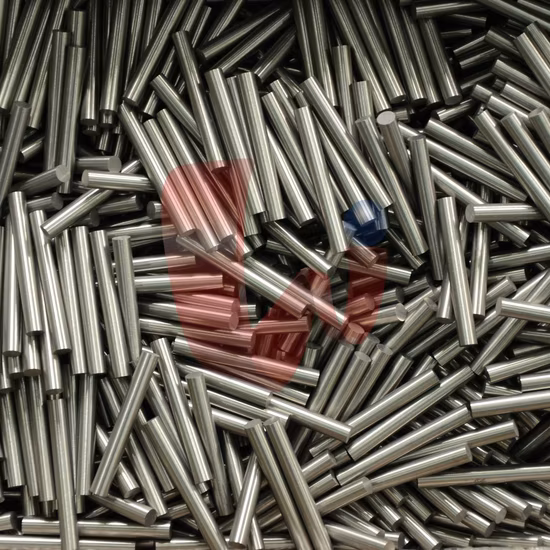

Tungsten Carbide Rod Tungsten Carbide Ground Cemented Carbide Short Rod Bar

Basic Info

Diameter	From 1mm to 35mm
Length	From 50mm to 720mm
Transport Package	Plastic Box
Specification	From 1mm to 35mm Diameters. Any length
Trademark	JXTC
Origin	China
Production Capacity	1000tons/Year

Product Description

Mature and complete industrial chain from the very beginning of mining to control the quality, and customize professional materials.



Recommended Grade:

Grade	ISO application	grain size	Colbalt content	density g/cm³	hardness(HRA)	bending strength	Application
JT204N	K10-K20	0.2	9	14.4	94.0	3800	Super fine grain produced by H.C.Starck gives JT204N better bending resistance. JT204N is suitable for PCB micro-milling cutter, diameter of which is less than 0.4mm micro-milling cutter, as well as milling of high hard steel above 60HRC.
JT104U	K05-K10	0.4	6.5	14.72	94.0	3800	Fine grain produced by H.C.Starck gives JT104F better bending resistance. JT104F is suitable for PCB micro-milling cutter, diameter of which is less than 0.8mm micro-milling cutter.
JT104F	K05-K10	0.6	6	14.85	93.5	3500	Super fine grain produced by H.C.Starck and low cobalt content gives JT104F high hardness and better heat conductivity.Suitable for general aluminum semi-finishing and finishing processing.
JT404U	K30-K40	0.5	12	14.14	92.8	4200	Fine grain produced by H.C.Starck gives JT404U the combination of good wear-resistance and bending resistance. JT404U is suitable for universal processing of steel (below HRC45) .
JT304F	K20-K30	0.7	10	14.45	91.7	4000	Fine grain produced by H.C.Starck gives JT304F the combination of good wear-resistance and bending resistance. JT304F is suitable for universal processing of steel (below HRC45) .
JT304	K20-K30	0.8	10	14.45	91.5	3800	Fine grain produced by H.C.Starck gives JT304F the combination of good wear-resistance and bending resistance. JT304F is suitable for universal processing of steel (below HRC45) .
JT404F	K30-K40	0.6	11.5	14.14	92.8	4100	Fine grain produced by H.C.Starck gives JT404F the combination of good wear-resistance and bending resistance. JT404 is suitable for universal processing of steel ( HRC:45-55) .
